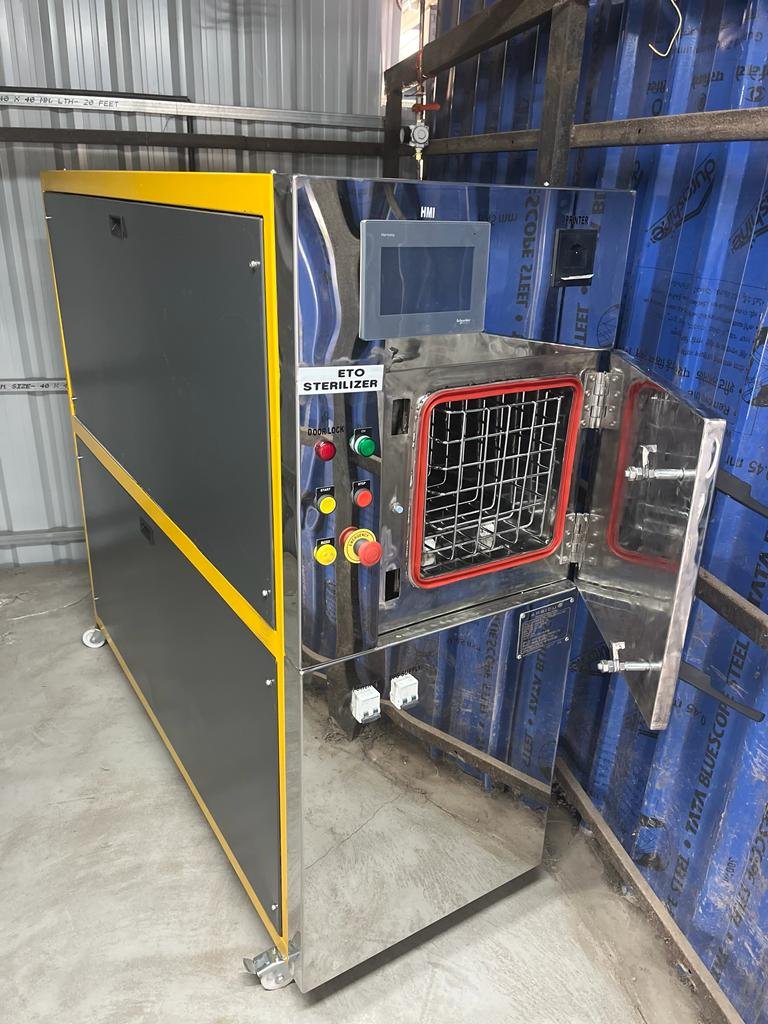

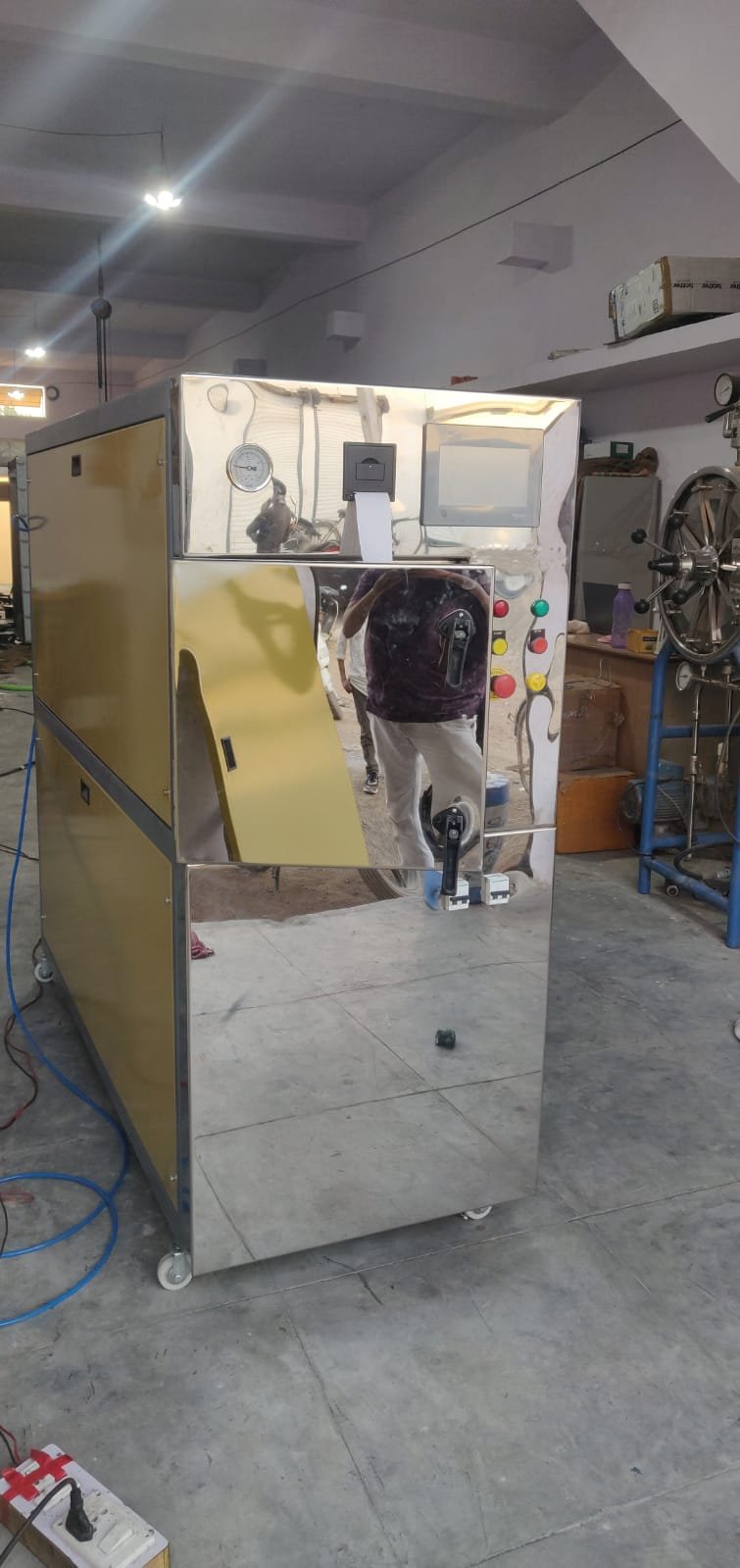

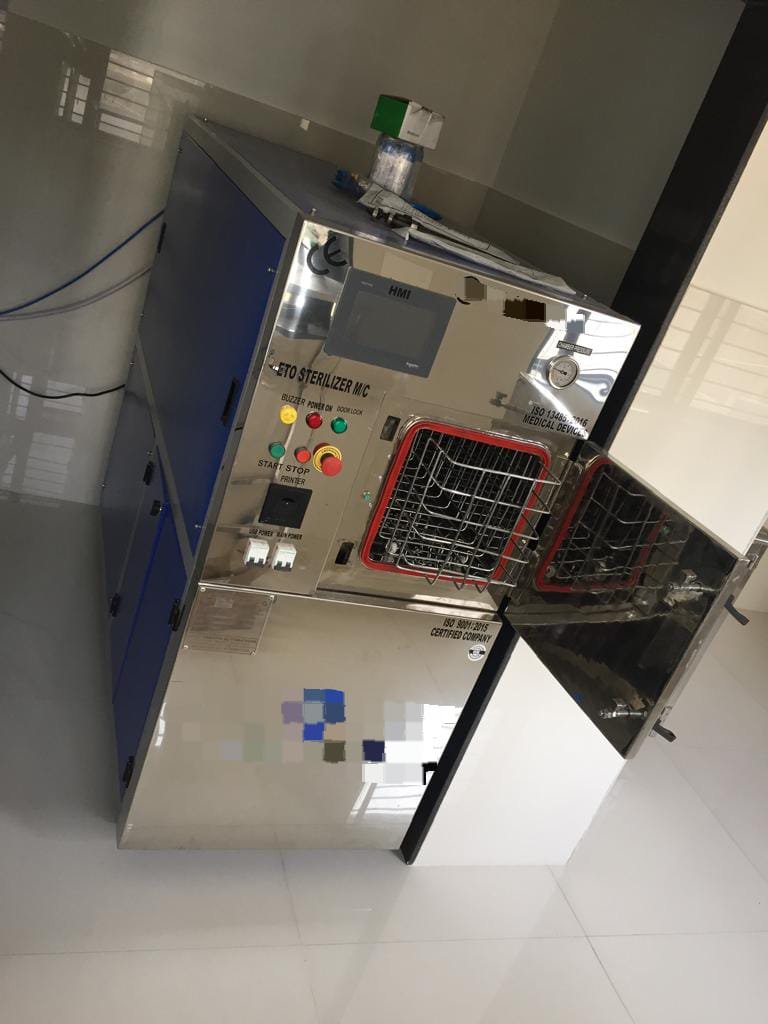

Fully Automatic Ethylene Oxide Sterilizer

Inner Seal (Chamber) : SS316 L
Chamber Operating Pressure : Negative Pressure Cycle
Chamber Testing Pressure : 1.5 Kg/cm2

Single Door : SS304 L
Gasket : Silicon Gasket (10/12 mm solid section)
Outer Cover : Factory Finished (Poly-coated) MS
Heating : Heaters on all sides of the Chamber for uniform heating throughout the load.
Temperature Sensor : Maximum 65°C (Chamber)

RH% Sensor : For measuring and controlling the humidity of the chamber
Pressure Transmitter : For measuring and controlling the pressure-vacuum that the load is subjected to during removal and charging of Gas.

All fittings on the Machine: SS 304
Safety Valves : SS 304

All Valves for Automation : Teflon construction Pneumatic valves, operated by comp. Air supply through Solenoid Valves.

Humidification : Special Humidifier for the purpose of humidification of the load and heating of the gas.
Vacuum : Special Noise-less Vacuum Pump provided for vacuum and aeration of the load.

Automation Hardware : PLC Renu, Omron / HMI Renu, Omron
Process Reports with Thermal Printer : Reports are generated by the software for each and every cycle in three formats, viz.
(i) Graph Report
(ii) Single Page Summary Report and
(iii) Detailed Report

Testing : Pressure / Vacuum testing as per specified standards. (1.5 times the working pressure)

Operation : All functions are electro-pneumatically operated. Door closing is manual
Loading Trolley : Fabricated with SS 304

Hospital and Healthcare
Pharmaceutical
